Services at The Purcell Co

Manufacturing Quality

With Cutting Edge Technology

TPC executes a range of processes on a variety of materials to serve diverse industries with many intended applications. Our primary machining processes include Horizontal and Vertical machining centers where we perform boring, contouring, counterboring, countersinking, drilling, facing, grooving, reaming, tapers, tapping, thread milling and Turning Centers which include live turning. CNC programming utilizes Master Cam 2019 and our Design and Development department’s CAD platform is Creo Parametric (formerly Pro Engineer). Materials include Alloy Steels, Aluminum, Brass, Bronze Alloy, Carbon Steel, Cast Iron, Cooper, Nickel, Stainless Steel, and Plastic Polymers. Common intended applications of our work include Aluminum Bearings and Ring seals for the Industrial HVAC industry, Adapters, Bushings, Couplings, Flanges, Spacers, Weldments, Road Equipment Components, Machine Components, Systems and Services that support the Confectionery Industry, and more.

HORIZONTAL CENTERS

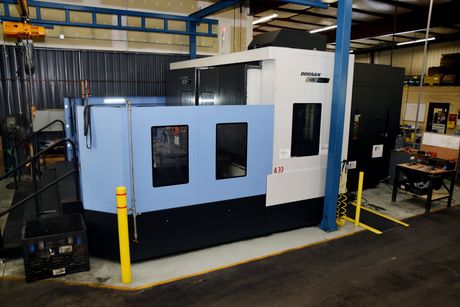

- Doosan HM 1000 Horizontal Center w/ 2 Pallets AWC

X Axis Travel = 82.7”

Y Axis Travel = 49.2”

Z Axis Travel = 49.2”

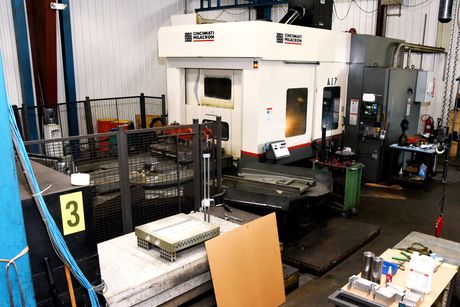

- Cincinnati Magnum 1000 Horizontal Center w/ 3 Pallets AWC

X Axis Travel = 61”

Y Axis Travel = 51”

Z Axis Travel = 47”

- KIA KH-63 4 Axis Horizontal Center w/ 2 Pallets AWC

X Axis Travel = 37”

Y Axis Travel = 30”

Z Axis Travel = 28.5”

- (2) KIA KH-63 Horizontal Center w/ 2 Pallets AWC

X Axis Travel = 37”

Y Axis Travel = 30”

Z Axis Travel = 28.5”

VERTICAL CENTERS

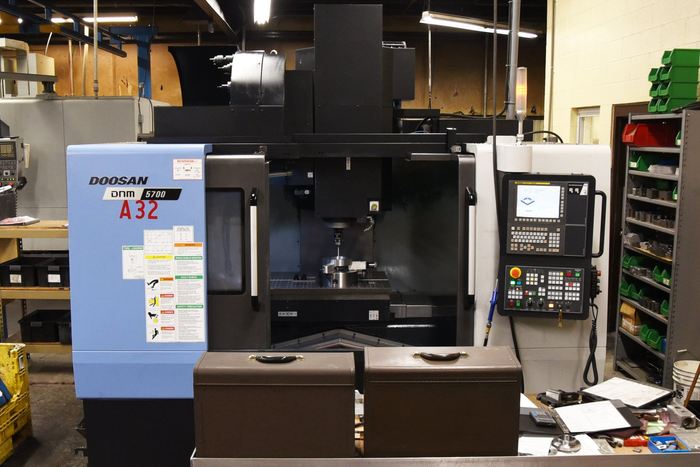

- Doosan Vertical Machining Center DNM 5700 w/8,000 RPM

X Axis Travel = 41”

Y Axis Travel = 22”

Z Axis Travel = 20”

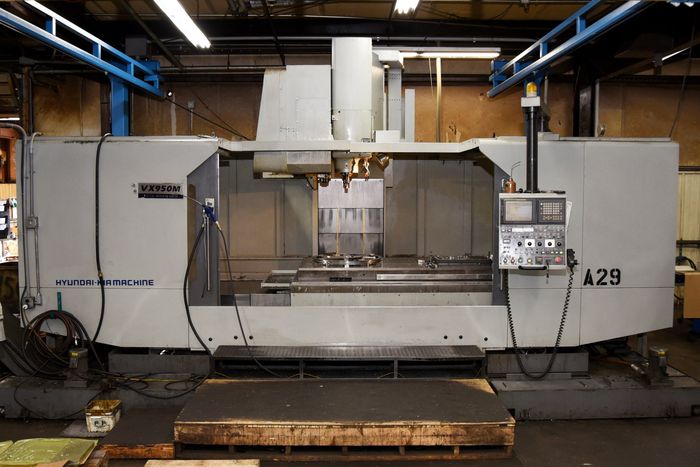

- KIA 950 Vertical Center, 36" x 100" Table

X Axis Travel = 96.49”

Y Axis Travel = 37.44”

Z Axis Travel = 36.44”

- Mazak SV-25 Vertical Center, 36" x 94" table

X Axis Travel = 80”

Y Axis Travel = 31.89”

Z Axis Travel = 29.50”

- Sugino CNC Self Center V8 (2 Pallet)

TURNING CENTERS

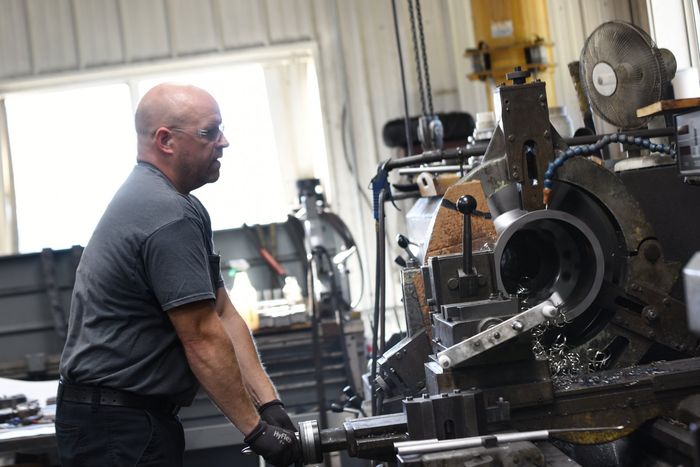

- (3) Cinturn Lathe, 50 hp Turns 30" dia. Completely

Chuck Diameter = 18”

Z Axis Travel = 34”

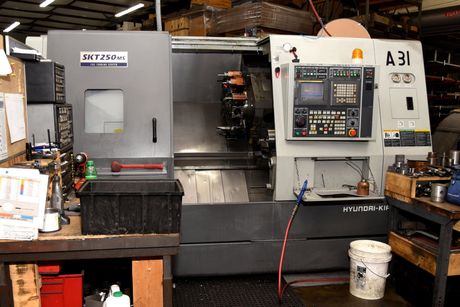

- Kia SKT-250MS (Dual Spindle) 6 Live Tool Pockets for Face and O.D. Drilling & Milling

Chuck Diameter = 10"

Z axis Travel = 29.5”

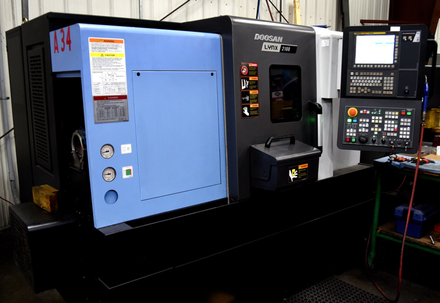

- Doosan Lynx 2100A

Chuck Diameter = 6”

Z Axis Travel = 13.3”

- Cinturn Lathe, 50 hp

Chuck Diameter = 18"

Z Axis Travel = 80"

- Cinturn Lathe, 50 hp

Chuck Diameter = 15"

Z Axis Travel = 80”

- H-25 Hitachi Seiki Lathe 25 hp w/ Programmable Tail Stock

Chuck Diameter = 10”

Z Axis Travel = 44”

-(2) Cincinnati Avengers 250MW (Dual Spindle) 6 Live Tool Pockets Face and O.D. Drilling & Milling

Chuck Diameter = 10”

Z Axis Travel = 25”

- (2) Cincinnati Avengers Lathe

Chuck Diameter = 10"

Z Axis Travel = 25”

DESIGN & DEVELOPMENT

TPC offers a complete line of engineering, design, assembly, and install services. Technical Data Packages include Assembly Drawings with Bill of Materials and fully detailed component drawings. We also create designs/drawings for new parts and assemblies and reverse engineer designs/drawings for existing parts and assemblies.

CAD Platform: Creo Parametric

(Formerly Pro Engineer)

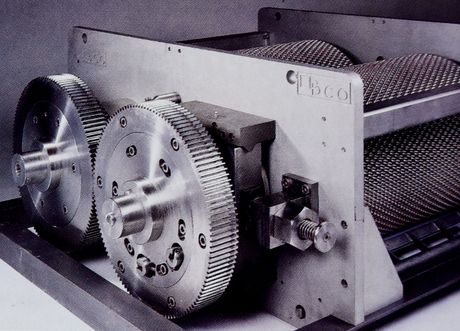

Chilling Drop Roll Set

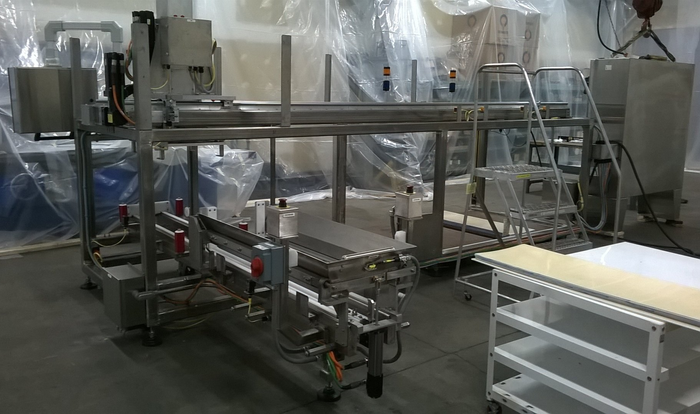

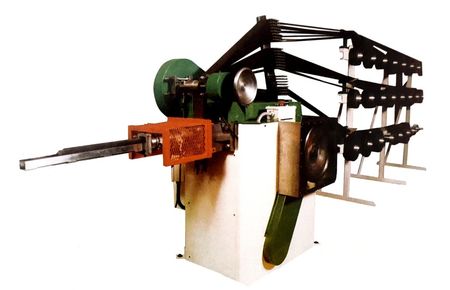

Cup Machine

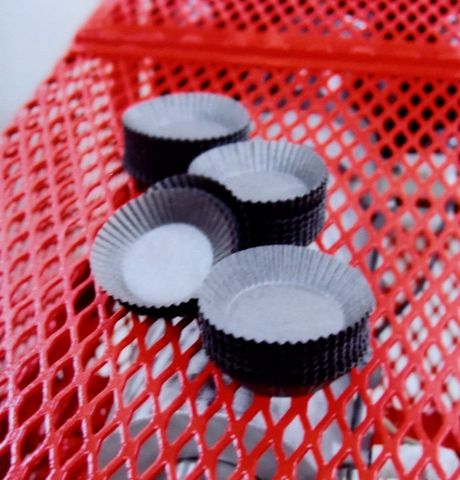

Cup Wrappers

Quality Assurance

TPC is proud of its investment in its quality control department, which includes various gauging, instruments, and experienced personnel.

Our flagship piece is our programable Mitutoyo BHN1325

Co-ordinate Measuring Machine with 40” x 52” x 100” travel.

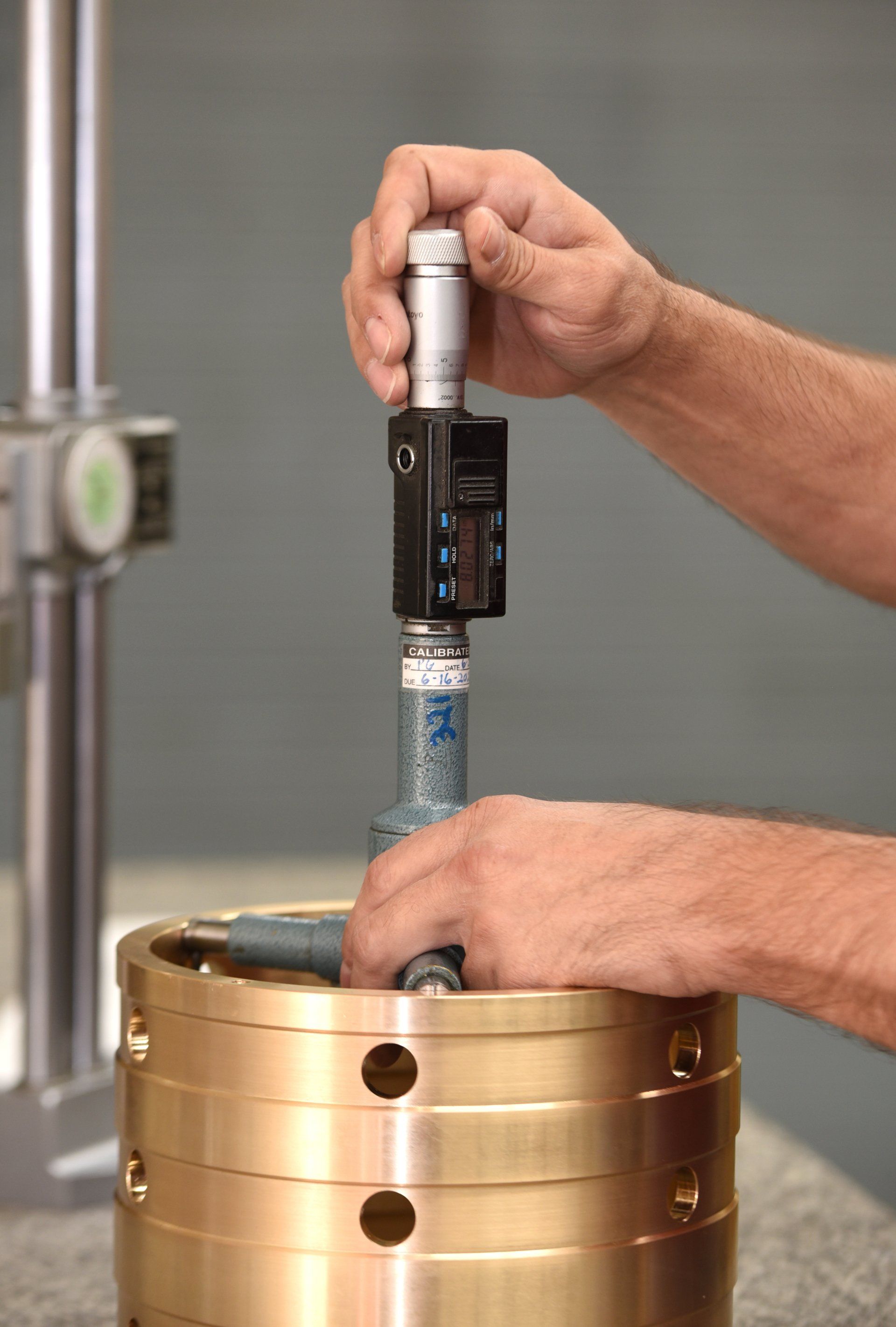

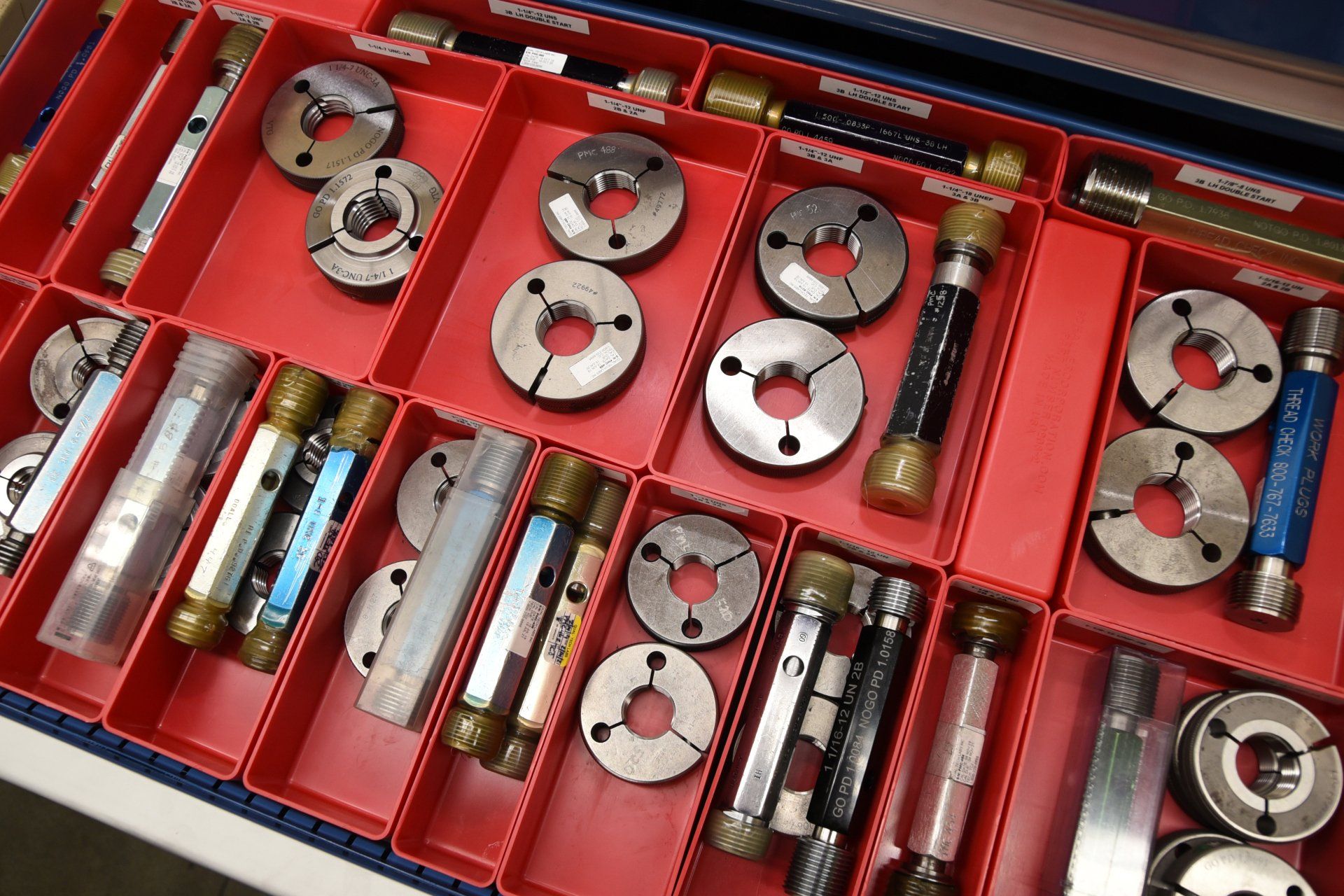

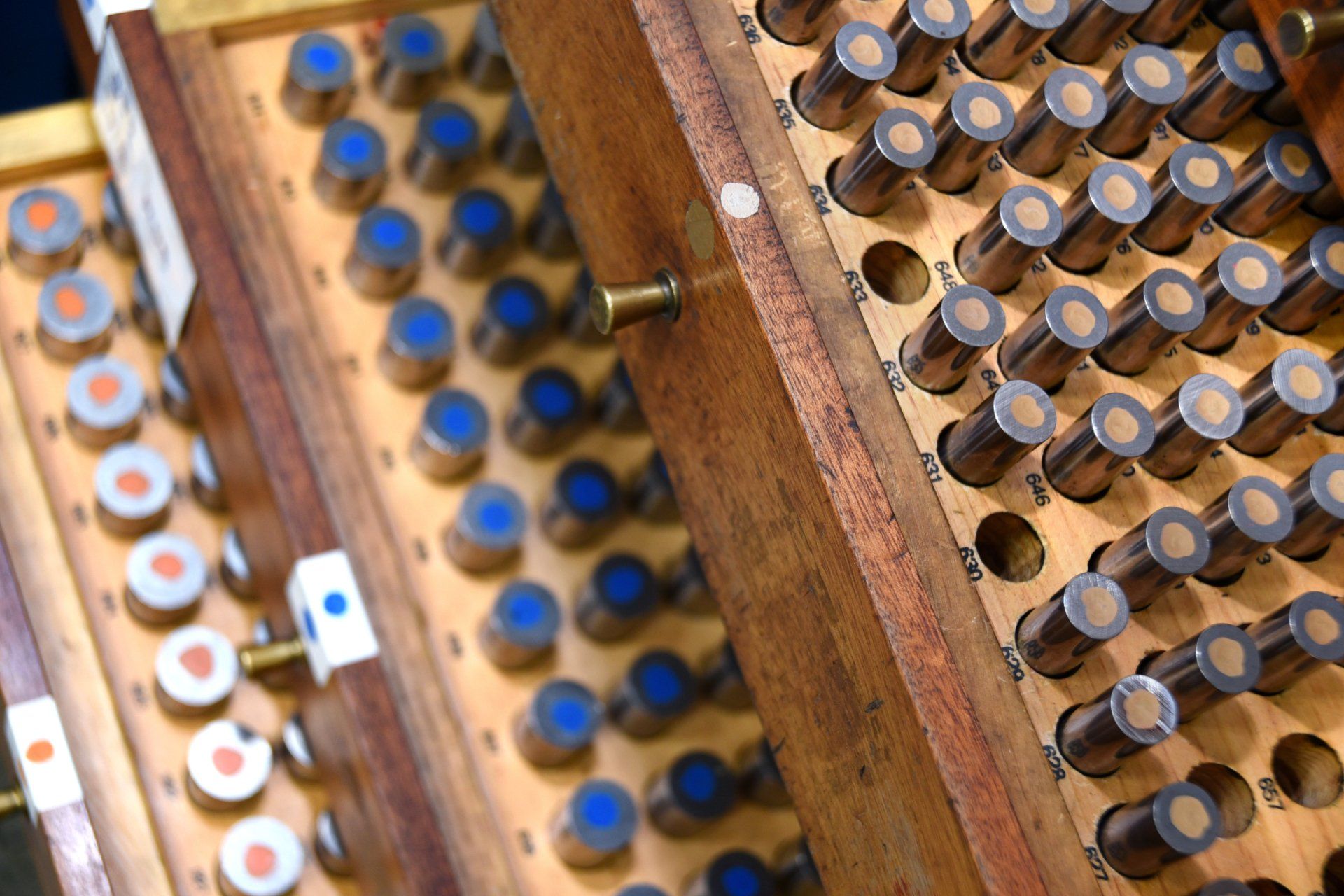

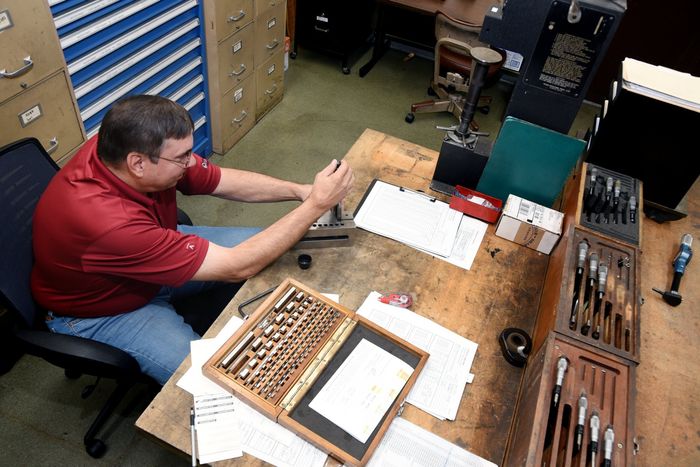

We also have a full complement of thread gauges/ring gauges/micrometers/dial bores plus many more utilized pieces.

All equipment is stored and maintained in our enclosed

climate-controlled quality room.

Our quality control personnel follow our calibration schedule that consists of in-house calibration and outside vendor services. Our physical standards are traceable to the National Bureau of Standards.
